ICC Provides Answers

Bob Sisson, Inspections by Bob, Boyds, Md., recommends using the International Code Council (ICC) as a resource, and provides the following example of how ICC helped him.

The ASHI Certified Inspector was questioned by a builder about the improper bundling of wires he reported during a pre-drywall inspection. Because he is an ICC member, he was able to request an interpretation.

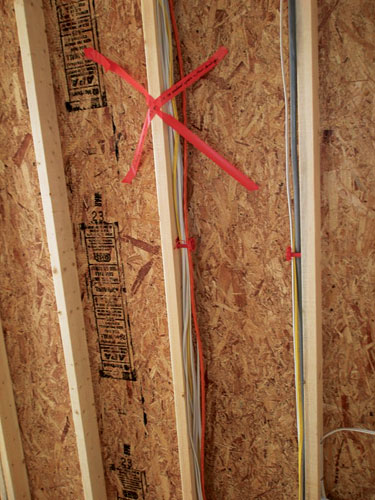

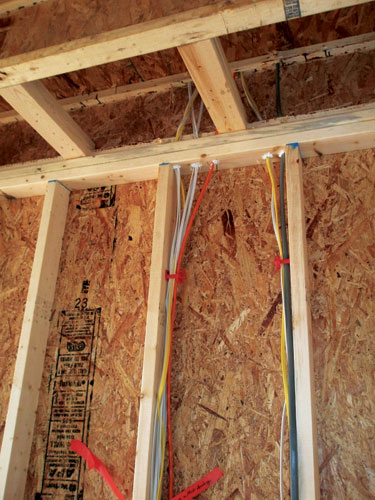

Sisson said, “I sent two pictures [see below] and asked for an interpretation surrounding the bundling of the cables.

I was able to forward the reply from ICC to the builder, with the clout of the ICC behind the interpretation.
“I was impressed with the turnaround time on the interpretation,” he added … “I submitted a request verbally Friday night and got a call Monday morning.  A quick e-mail exchange and I had my interpretation.  It doesn’t get much better than that. Bravo, ICC.”
Here’s his message and the reply.

The question is about BUNDLING of wires in an insulated stud cavity. The wires will be surrounded with Fiberglas insulation inside the closed cavity.

Situation: Residential single-family new construction
The electrical panel is in the basement. All the wires for the second floor go up through the outside wall cavity of the first floor. In one “bundle” of wires, there are approx-imately nine wires, 4-15A circuits, 4-20A circuits and 1-30A circuit in the wall cavity secured in three places in the 8′. These wires will be surrounded with Fiberglas insulation.

I was trained (forever ago) that you couldn’t “bundle” more than three wires for more than 18″ without derating the wires …  this situation fails both conditions.I cannot find this in my 2002 NEC or 2003 IRC. Is it still there, and where would I find it? Is it still in later codes?
Lastly, if it is there, where is it and what is the “formal” wording?

Obviously, my concern is that this bundle will get hot, as there will be no (or should not be) any air circulating around this bundle once the cavity is stuffed with  Fiberglas.

The reply
Sections 3601.3, E3605.3 and E3605.4.4 and row one of Table E3702.1 of the 2006 IRC and section 334.80 of the 2008 NEC are the relevant sections. Note that the 2008 NEC has added a new rule about NM cables in thermal insulation, so your concern with insulation is valid now. The installation in the pictures lacks protection from physical damage and needs to be derated for conductor proximity because of the bundling and the thermal insulation, and possibly because of the number of cables that pass through a single bored hole in the wall plates. Note that section E3601.3 may or may not apply. See 2008 NEC section 334.80, which now clarifies the application of the 10%/10 foot rule. In summary, I see multiple violations in your pictures.
